Minispel i Unity | Flappy Cube

I den här handledningen kommer vi att göra ett spel inspirerat av spelet Flappy Bird, med endast primitiva former i Unity.

Spelmekaniken är enkel: spelaren trycker på knappen för att få karaktären att studsa upp när han närmar sig en uppsättning pelare. Spelaren måste undvika inläggen och stanna mellan dem. Genom att gå över varje steg av pelarna läggs 1 poäng till. Målet är att slå ditt tidigare högsta poäng.

Allt ovan kommer att genereras från ett skript, utan något manuellt arbete.

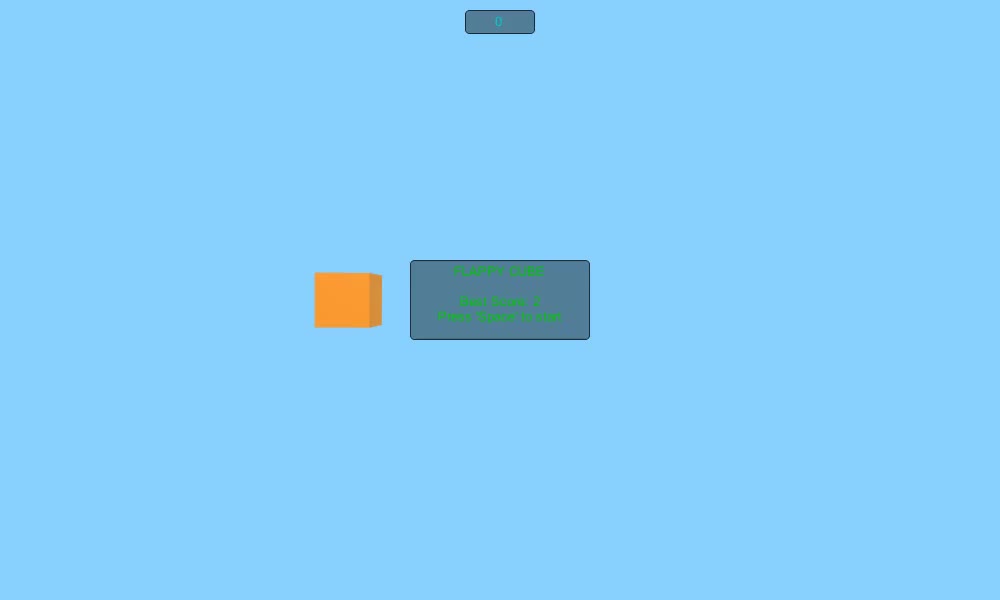

Sharp Coder Videospelare

Prova själv

Låt oss börja!

Unity version som används i denna handledning: Unity 2018.3.0f2 (64-bitars)

Steg 1: Skapa alla nödvändiga skript

På grund av spelets natur kan det inte göras med bara ett skript. Åtminstone kräver det skapande 3 skript för att hantera kollisionen och trigga kolliderardetektering.

SC_TriggerDetector.cs

//You are free to use this script in Free or Commercial projects
//sharpcoderblog.com @2019

using UnityEngine;

public class SC_TriggerDetector : MonoBehaviour
{
    //This script is assigned automatically to a Pillar Trigger Collider by SC_FlappyCubeGame and will be used to count the points
    [HideInInspector]
    public SC_FlappyCubeGame fcg;

    void OnTriggerEnter(Collider other)
    {
        fcg.AddPoint();
    }
}

SC_CollisionDetector.cs

//You are free to use this script in Free or Commercial projects
//sharpcoderblog.com @2019

using UnityEngine;

public class SC_CollisionDetector : MonoBehaviour
{
    //This script is assigned automatically to Flappy Cube by SC_FlappyCubeGame and will be used to detect the collisions
    [HideInInspector]
    public SC_FlappyCubeGame fcg;

    void OnCollisionEnter(Collision collision)
    {
        //print("OnCollisionEnter");
        fcg.GameOver();
    }
}

SC_FlappyCubeGame.cs

//You are free to use this script in Free or Commercial projects
//sharpcoderblog.com @2019

using System.Collections;
using UnityEngine;

public class SC_FlappyCubeGame : MonoBehaviour
{
    //Public variables
    public Camera mainCamera;
    public float cameraDistance = 10f;
    public float pillarHeight = 10f;
    public float distanceBetweenPillars = 5f;
    public float heightDistance = 4.5f;
    public float speed = 1.25f;
    public Color flappyCubeColor = new Color(1, 0.5f, 0);
    public Color pillarColor = Color.green;

    //Player cube
    GameObject flappyCube;
    Rigidbody flappyCubeRigidbody;

    //Pillars
    public class Pillar
    {
        public Transform pillarRoot;
        public GameObject topCube;
        public GameObject bottomCube;
        public BoxCollider middleCollider; //Trigger collider for points
        public float offsetX; //When pillar reaches the end of Camera view, bring it to front by adding the offset
    }
    public Pillar[] pillarCubes;

    Vector3 initialPoint;
    Vector3 endPoint;
    Vector3 topPoint;
    Vector3 bottomPoint;
    Vector3 flappyCubeInitialPosition;

    bool gameStarted = false;
    bool gameOver = false;
    bool canRestart = false;
    bool newBestScore = false;

    int totalPoints = 0;
    int highestScore = 0;

    // Start is called before the first frame update
    void Start()
    {
        //Define reference points relative to Main Camera
        initialPoint = mainCamera.ViewportToWorldPoint(new Vector3(1.1f, 0.5f, cameraDistance));
        endPoint = mainCamera.ViewportToWorldPoint(new Vector3(-0.1f, 0.5f, cameraDistance));
        topPoint = mainCamera.ViewportToWorldPoint(new Vector3(0.5f, 1f, cameraDistance));
        bottomPoint = mainCamera.ViewportToWorldPoint(new Vector3(0.5f, 0f, cameraDistance));

        //Create Flappy Cube
        flappyCube = GameObject.CreatePrimitive(PrimitiveType.Cube);
        flappyCubeInitialPosition = mainCamera.ViewportToWorldPoint(new Vector3(0.35f, 0.5f, cameraDistance));
        flappyCube.transform.position = flappyCubeInitialPosition;
        flappyCubeRigidbody = flappyCube.AddComponent<Rigidbody>();
        flappyCubeRigidbody.constraints = RigidbodyConstraints.FreezePositionX | RigidbodyConstraints.FreezePositionZ | RigidbodyConstraints.FreezeRotationX | RigidbodyConstraints.FreezeRotationY;
        MeshRenderer mr = flappyCube.GetComponent<MeshRenderer>();
        mr.sharedMaterial = new Material(Shader.Find("Legacy Shaders/Diffuse"));
        mr.sharedMaterial.color = flappyCubeColor;
        flappyCube.AddComponent<SC_CollisionDetector>().fcg = this;

        //Create Pillar cubes
        pillarCubes = new Pillar[7];
        Material pillarMaterial = new Material(flappyCube.GetComponent<MeshRenderer>().sharedMaterial);
        pillarMaterial.color = pillarColor;
        for (int i = 0; i < pillarCubes.Length; i++)
        {
            Vector3 initialPointTmp = initialPoint + new Vector3(distanceBetweenPillars * i, 0, 0);
            //Create new Pillar instance
            Pillar newPillar = new Pillar();
            //Create pillar Root Object
            newPillar.pillarRoot = (new GameObject("Pillar")).transform;
            newPillar.pillarRoot.position = initialPointTmp;
            //Middle collider
            GameObject colliderObject = new GameObject("TriggerCollider");
            colliderObject.transform.position = initialPointTmp;
            colliderObject.transform.SetParent(newPillar.pillarRoot);
            newPillar.middleCollider = colliderObject.AddComponent<BoxCollider>();
            newPillar.middleCollider.size = new Vector3(0.5f, heightDistance, 1);
            newPillar.middleCollider.isTrigger = true;
            colliderObject.AddComponent<SC_TriggerDetector>().fcg = this;
            //Top Pillar
            newPillar.topCube = GameObject.CreatePrimitive(PrimitiveType.Cylinder);
            newPillar.topCube.transform.SetParent(newPillar.pillarRoot);
            initialPointTmp.y += heightDistance / 2 + pillarHeight;
            newPillar.topCube.transform.position = initialPointTmp;
            newPillar.topCube.transform.localScale = new Vector3(1.5f, pillarHeight, 1.5f);
            newPillar.topCube.GetComponent<MeshRenderer>().sharedMaterial = pillarMaterial;
            Destroy(newPillar.topCube.GetComponent<CapsuleCollider>());
            newPillar.topCube.AddComponent<BoxCollider>();
            //Bottom pillar
            newPillar.bottomCube = GameObject.CreatePrimitive(PrimitiveType.Cylinder);
            newPillar.bottomCube.transform.SetParent(newPillar.pillarRoot);
            initialPointTmp.y -= (heightDistance / 2 + pillarHeight) * 2;
            newPillar.bottomCube.transform.position = initialPointTmp;
            newPillar.bottomCube.transform.localScale = new Vector3(1.5f, pillarHeight, 1.5f);
            newPillar.bottomCube.GetComponent<MeshRenderer>().sharedMaterial = pillarMaterial;
            Destroy(newPillar.bottomCube.GetComponent<CapsuleCollider>());
            newPillar.bottomCube.AddComponent<BoxCollider>();
            //Randomize Y position
            float positionYOffset = Random.Range(-distanceBetweenPillars / 2, distanceBetweenPillars / 2);
            newPillar.pillarRoot.position += new Vector3(0, positionYOffset, 0);
            //Set Pillar parent
            newPillar.pillarRoot.SetParent(transform);
            //Assign Pillar instance to array
            pillarCubes[i] = newPillar;
        }

        //Load highest score if there any
        if (PlayerPrefs.HasKey("SC_HightScore"))
        {
            highestScore = PlayerPrefs.GetInt("SC_HightScore");
        }
    }

    // Update is called once per frame
    void Update()
    {
        //Cube jump
        if (Input.GetKeyDown(KeyCode.Space))
        {
            if (!gameStarted)
            {
                gameStarted = true;
                flappyCubeRigidbody.isKinematic = false;
            }
            if (gameOver)
            {
                RestartGame();
            }
            else
            {
                flappyCubeRigidbody.velocity = new Vector3(0, 8.5f, 0);
            }
        }

        if (!gameStarted)
        {
            if (!flappyCubeRigidbody.isKinematic)
            {
                flappyCubeRigidbody.isKinematic = true;
            }
        }
        else
        {
            //Infinite loop movement (The first Pillar becomes last once it goes out of view and so on)
            for (int i = 0; i < pillarCubes.Length; i++)
            {
                pillarCubes[i].pillarRoot.localPosition = new Vector3(pillarCubes[i].pillarRoot.localPosition.x + pillarCubes[i].offsetX - Time.deltaTime * speed, pillarCubes[i].pillarRoot.localPosition.y, pillarCubes[i].pillarRoot.localPosition.z);

                if (pillarCubes[i].pillarRoot.localPosition.x < endPoint.x)
                {
                    //Shift this Pillar back to the beginning
                    int shiftAfter = -1;
                    for (int a = 0; a < pillarCubes.Length; a++)
                    {
                        if (shiftAfter < 0 || pillarCubes[a].pillarRoot.localPosition.x > pillarCubes[shiftAfter].pillarRoot.localPosition.x)
                        {
                            shiftAfter = a;
                        }
                    }

                    if (shiftAfter > -1)
                    {
                        pillarCubes[i].pillarRoot.localPosition = new Vector3(pillarCubes[shiftAfter].pillarRoot.localPosition.x + distanceBetweenPillars, initialPoint.y, initialPoint.z);
                        float positionYOffset = Random.Range(-distanceBetweenPillars / 2, distanceBetweenPillars / 2);
                        pillarCubes[i].pillarRoot.localPosition += new Vector3(0, positionYOffset, 0);
                    }
                }
            }
        }

        //Slightly increase fall speed
        flappyCubeRigidbody.velocity -= new Vector3(0, Time.deltaTime * 5, 0);
        //Slightly rotate the Cube according to rigidbody velocity
        flappyCube.transform.localEulerAngles = new Vector3(0, 0, Mathf.Clamp(flappyCubeRigidbody.velocity.y, -35, 35));

        //Came Over if the Cube goes outside of the camera view
        if ((flappyCube.transform.position.y > topPoint.y || flappyCube.transform.position.y < bottomPoint.y) && !gameOver && gameStarted)
        {
            GameOver();
        }
    }

    void RestartGame()
    {
        if (canRestart)
        {
            //Move pillars to original position
            for (int i = 0; i < pillarCubes.Length; i++)
            {
                Vector3 initialPointTmp = initialPoint + new Vector3(distanceBetweenPillars * i, 0, 0);
                //Randomize Y position
                float positionYOffset = Random.Range(-distanceBetweenPillars / 2, distanceBetweenPillars / 2);
                pillarCubes[i].pillarRoot.position = initialPointTmp + new Vector3(0, positionYOffset, 0);
            }

            flappyCube.transform.position = flappyCubeInitialPosition;
            flappyCube.transform.localEulerAngles = Vector3.zero;
            flappyCubeRigidbody.velocity = Vector3.zero;
            gameOver = false;
            gameStarted = false;
            totalPoints = 0;
            newBestScore = false;
        }
    }

    public void GameOver()
    {
        gameOver = true;
        if (totalPoints > highestScore)
        {
            //Save highest score
            PlayerPrefs.SetInt("SC_HightScore", totalPoints);
            highestScore = totalPoints;
            newBestScore = true;
        }
        StartCoroutine(CanRestart());
    }

    IEnumerator CanRestart()
    {
        canRestart = false;
        yield return new WaitForSeconds(1.5f);
        canRestart = true;
    }

    public void AddPoint()
    {
        totalPoints++;
    }

    void OnGUI()
    {
        if (gameOver)
        {
            GUI.color = Color.red;
            GUI.Box(new Rect(Screen.width / 2 - 90, Screen.height / 2 - 30, 180, 60), "GAME OVER\n" + (newBestScore ? "--New Best Score!--" : "") + "\nPress 'Space' to restart");
        }
        else
        {
            if (!gameStarted)
            {
                GUI.color = Color.green;
                GUI.Box(new Rect(Screen.width / 2 - 90, Screen.height / 2 - 40, 180, 80), "FLAPPY CUBE\n\nBest Score: " + highestScore + "\nPress 'Space' to start");
            }
        }

        //Show Score
        GUI.color = Color.cyan;
        GUI.Box(new Rect(Screen.width / 2 - 35, 10, 70, 24), totalPoints.ToString());
    }
}

Steg 2: Konfigurera spelet

  • Skapa ny scen
  • Skapa ett nytt GameObject (GameObject -> Create Empty) och namnge det "_GameGenerator"
  • Bifoga "SC_FlappyCubeGame"-skriptet till "_GameGenerator"-objektet

Spelet är nu klart, tryck Play för att testa det!
